USB-4485-M

Hi-Speed 4-Port USB to Serial Adapter (RS-485) with 5V DC Power Supply for External Devices and 15KV ESD Protection, with 2-pin power connector that has inverse polarity protection

Send Enquiry

Description

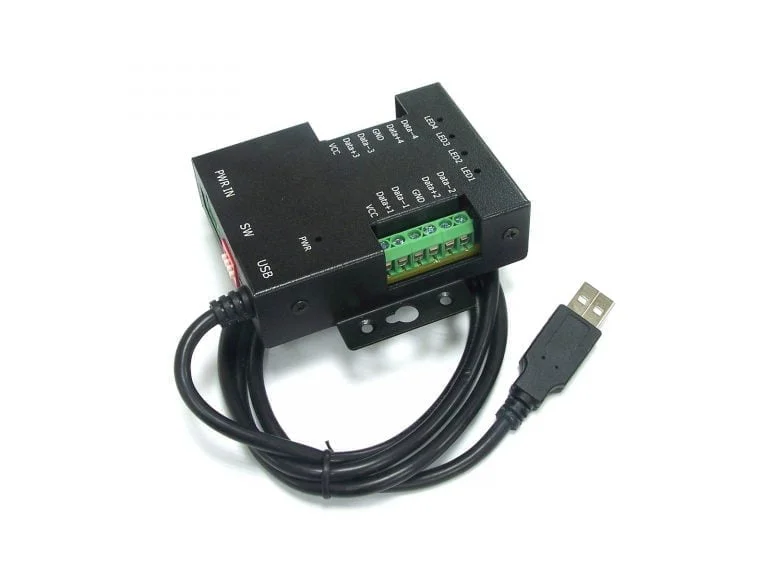

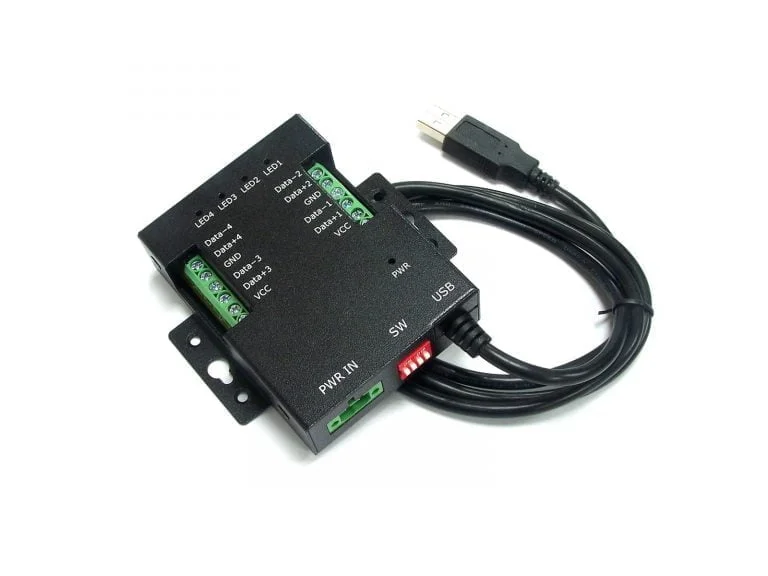

TITAN’s USB-4485-M is an industrial-grade USB to 4-port RS-485 adapter designed to add four high speed RS-485 communication ports to your server or PC. This USB to 4-port RS-485 adapter has easy plug-and-play and hot-swapping features, so it is automatically detected and installed. There are no IRQ & COM port conflicts, since the port doesn’t require any additional IRQ, DMA, memory as resources on the system. The RS-485 port functions as a native Windows COM port, and it is compatible with Windows serial communication applications. Each RS-485 port has its own built-in serial number in the hardware, and the COM port numbers and port sequence assigned will be always maintained after every reboot.

The USB-4485-M is designed for the use in the environment requiring 2-wire half duplex RS-485 modes. Two operation modes, 2-wire RS-485 with Echo and 2-wire RS-485 without Echo, are selectable by DIP switches. The operation mode of each port can be set individually, and the serial communication parameters in each port properties are configurable. Each RS-485 port is with built-in 15kV ESD protection and 600W surge protection.

Features


  • With 2-pin power connector that has inverse polarity protection
  • Adds four high speed half-duplex RS-485 serial ports via USB connection
  • USB2.0 interface supports high speed 480Mbps
  • Supports two operation modes: RS-485 half-duplex echo and non-echo mode
  • Installs as standard Windows COM port
  • COM port number can be changed to any available COM port number
  • Auto transmit buffer control for 2-wire RS-485 half-duplex operation
  • Built-in 15kV ESD protection for each RS-485 port
  • 600W surge protection on all RS-485 bus
  • Provides failure warning when reverse connection or incorrect signals detected
  • Protected circuits automatically shut down the breakdown RS-485 port
  • Each RS-485 port with 2kb receive buffer and 2kb transmit buffer
  • Requires no IRQ, DMA, I/O port
  • RS-485 termination installed on-board, enabled or disabled by jumper
  • Four dual color monitor LEDs indicating operation modes, port status, activity and error
  • External 4-pin DIP switch for easy setting of RS-485 echo/non-echo operation modes
  • Includes 12VDC power adapter with locking screw terminal power jack for reliable connection
  • Supports two power output of +5VDC, 100mA, through pin 1 (VCC) of terminal block, for external devices requiring power
  • Compact palm-size box with DIN rail brackets, optional DIN rail mounting kit for mounting
  • Two mounting holes on the bottom of metal case for optional DIN rail mounting adapter (DR-101) for alternative mounting onto DIN rail
  • USB cable of 90cm (3ft) included and locked to the metal case for added security
  • Supports Windows XP to 11, Server 2000 to Server 2022 (WHQL certified)
  • Supports Linux Kernel 3.0 and above
  • Supports Mac OS X 10.3 and above, driver signed by Apple

Specifications

USB Bus
ComplianceUSB 2.0 High Speed, USB 1.1 compliant
Speed480Mbps, hi-speed USB
ConnectorUSB type B
FIFO2k bytes transmit and receive
Operating SystemsSupports Windows XP to 11, Server 2000 to Server 2022 (WHQL certified)
Supports Linux Kernel 3.0 and above
Supports Mac OS X 10.3 and above, driver signed by Apple
InstallationThe driver is already installed (Linux), or automatically downloading and installing device drivers after Device connection (Windows).
Serial Interface
InterfaceRS-485
Number of Ports4
Connector6-pin terminal block
Max. Speedup to 12Mbps
RS-485 Signals (2 wire)Data-, Data+, GND
Protection15kV ESD protection for all signals
Serial Communication Parameters
Data Bits7, 8
ParityNone, Even, Odd, Mark, Space
Stop Bit1, 2
Flow ControlHardware (RTS, CTS), XON/XOFF
Power
Power Input12VDC, 2A power adapter
Power Output5VDC, 100mA through pin 1 of terminal block
Mechanical
CasingSECC metal chassis with DIN rail bracket
Environmental
Operating Temperature0°C to 55°C (32°F to 131°F)
Storage Temperature-20°C to 75°C (-4°F to 167°F)
Operating Humidity5% to 95% RH
Safety ApprovalsCE, FCC

Document


Product Manual

Software


Driver Installation

You need to install driver first, prior to hardware installation. Do not connect the USB-to-Serial Adapter to the USB port of your computer, before you finish driver installation.



Uninstalling Drivers

Uninstallation Guide For Windows 2000

Uninstallation Guide For Windows 10, 8.1, 8, 7, Vista, XP, Server 2016, Server 2008, Server 2003
