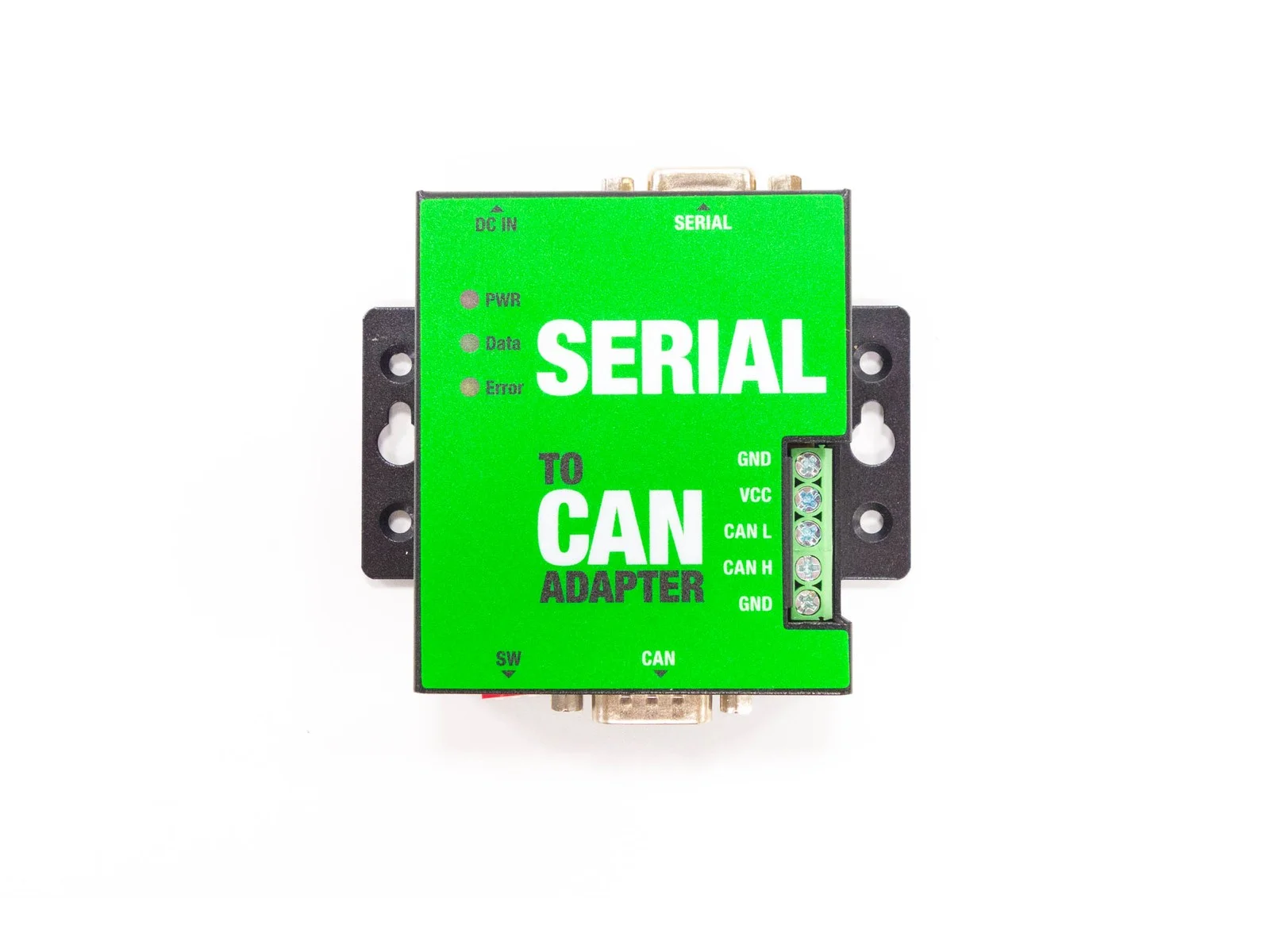

SER-CAN-M

1-Port Serial to CAN Bus Adapter with 12V DC Power Supply for External Devices

Send Enquiry
Categories: , Tags: ,

Description

A Controller Area Network (CAN) is a high-integrity asynchronous serial bus system for networking intelligent devices. It is often used in automotive and industrial systems. The SER-CAN-M is designed to make a fast, simple way to communicate with CAN bus devices. Connected to a serial port on your computer, the SER-CAN-M instantly adds an industrial CAN bus channel to your host system.

The SER-CAN-M provides a cost-effective solution for customers to enable communication with CAN bus devices. The solution designed by ARM Cortex-M0 32-bit microcontroller makes it very flexible in handling small burst of CAN frames at a high speed.

Plugging the SER-CAN-M into the serial port, The SER-CAN-M adapter provides instant connectivity to CAN bus devices. The SER-CAN-M provides an industrial solution for applications of CAN bus multi-drop communications over short and long distances.

The SER-CAN-M provides DC +5V/+12V 500mA power for external devices and is powered from an external DC 12V power supply.

Features

  • Adds a CAN bus port on your computer by connecting to the RS-232 serial port
  • One DB9 female connector (serial port)
  • One DB9 male connector (CAN bus port)
  • Includes one serial cable. Cable length: 100cm
  • Powered by external DC 12V power adapter
  • Provides DC +5V/+12V 500mA power for external devices
  • LEDs indicate initialization and CAN bus status
  • CAN bus speed up to 1Mbits
  • Supports CAN 2.0A and CAN 2.0B protocols
  • Supported CAN modes
    • Standard mode: normal operation on CAN bus
    • Listen mode: passive receiving of CAN frames
    • Echo mode: transmitter also receives sent frames (for testing purposes)
  • SER-CAN-M can be controlled over serial port using simple ASCII commands
  • Wide ambient temperature operation 0°C to 60°C (32°F to 140°F)
  • CE, FCC approval
  • Designed by ARM Cortex-M0 32-bit microcontroller
  • Drivers provided for Windows and Linux OS
  • Supports SocketCAN (slcan driver) since kernel 2.6.38+

Specifications

Serial interface
Serial PortRS-232 Serial Port
ConnectorDB9 female connector
ChipsetARM Cortex-M0 32-bit microcontroller

CAN Bus
CAN Bus ControllerBosch C_CAN module
Number of Ports1
ConnectorDB9 male connector
CAN Bus SpeedCAN 2.0A / 2.0B 5kbps to 1Mbps for transmit & receive
SignalsCAN_H, CAN_L, CAN_GND, CAN_V+
CAN Bus ModeStandard mode: normal operation on CAN bus Listen mode: passive receiving of CAN Frames Echo mode: transmitter also receives sent frames (for testing purposes)
LEDPower, CAN bus data activity, CAN bus error
Protection+/- 16kV ESD protection for all signals

Software
API LibrarySupported OS: Windows,Linux Supports C/C++, C#, VB.NET, VB6, Python and LabVIEW
UtilityOn-board firmware update utility
Linux OSSupports SocketCAN (slcan driver) since kernel 2.6.38+
Monitoring ToolsSupported by CANHacker, Titan CAN Test

Power Requirement
Power InputDC 12V external power adapter
Power ConsumptionMax. 80mA@12VDC (no external devices)

Environmental
Operating Temperature0°C to 60°C (32°F to 140°F)
Storage Temperature-20°C to 75°C (-4°F to 167°F)
Operating Humidity5% to 95% RH
Safety ApprovalsCE, FCC

Mechanical
CaseSECC sheet metal (1mm)
Dimensions81mm × 81mm × 24mm (L × W × H) Case
Weight175g

Document

Product Manual

Icon

SER-CAN-M Manual

1 file(s) 2.17 MB
Download

Software

USB to CAN Driver

Icon

USB to Serial Drivers 2.12.36.4 for Windows

1 file(s) 1.42 MB
Download

TITAN CAN C/C++ DLL

TITAN’s CAN application programming interface (API) is written in C/C++ and compiled into a DLL file. This DLL allows users to easily create programs to control our CAN products using simple, easy to understand functions. It uses the stdcall calling convention, allowing a large number of high-level languages to import the DLL without incompability problems.

Icon

CAN_API For Windows 32/64 bit

1 file(s) 88.00 KB
Download
Icon

CAN_API For Linux 32/64 bit

1 file(s) 18.27 KB
Download
Icon

CAN Programming Guide

1 file(s) 125.59 KB
Download

TITAN CAN Tool

Set the USB to CAN adapter to work in high speed (3Mbits).

Instructions for use

Icon

CAN_BAUDRATE_SET

1 file(s) 10.50 KB
Download
Icon

CAN_bitrate_calculator

1 file(s) 3.12 MB
Download
Icon

CAN Programming Guide

1 file(s) 125.59 KB
Download

TITAN CAN Test

Icon

TITAN CAN Test

1 file(s) 66.17 KB
Download

CANOpen

CanFestival project is an open source CANopen multi-platform framework. canfestival.org

Download the driver for CanFestival, or download the full CanFestival source code with TITAN CAN driver.

Icon

CanFestival_TITAN_driver

1 file(s) 43.19 KB
Download
Icon

CanFestival-3

1 file(s) 3.88 MB
Download
Icon

CanFestival_example_win_x86

1 file(s) 23.75 KB
Download
Icon

CanFestival_example_win_x64

1 file(s) 26.85 KB
Download
Icon

CanFestival_example_linux_x86

1 file(s) 46.40 KB
Download
Icon

CanFestival_example_linux_x64

1 file(s) 41.96 KB
Download

CANHacker

Icon

CANHacker

1 file(s) 1.69 MB
Download

Sample Code

Icon

TITAN CAN C# Sample Code

1 file(s) 187.98 KB
Download
Icon

TITAN CAN VB6 Sample Code

1 file(s) 31.34 KB
Download
Icon

TITAN CAN LabVIEW Sample Code

1 file(s) 278.29 KB
Download
Icon

TITAN CAN VBNET Sample Code

1 file(s) 139.32 KB
Download
Icon

TITAN CAN Python Sample Code

1 file(s) 43kb
Download
Icon

TITAN CAN LabVIEW Sample Code (64bit)

1 file(s) 90.39 KB
Download

FaQ

FaQ: Using CAN_API.dll on a 32 bit windows Operating system
