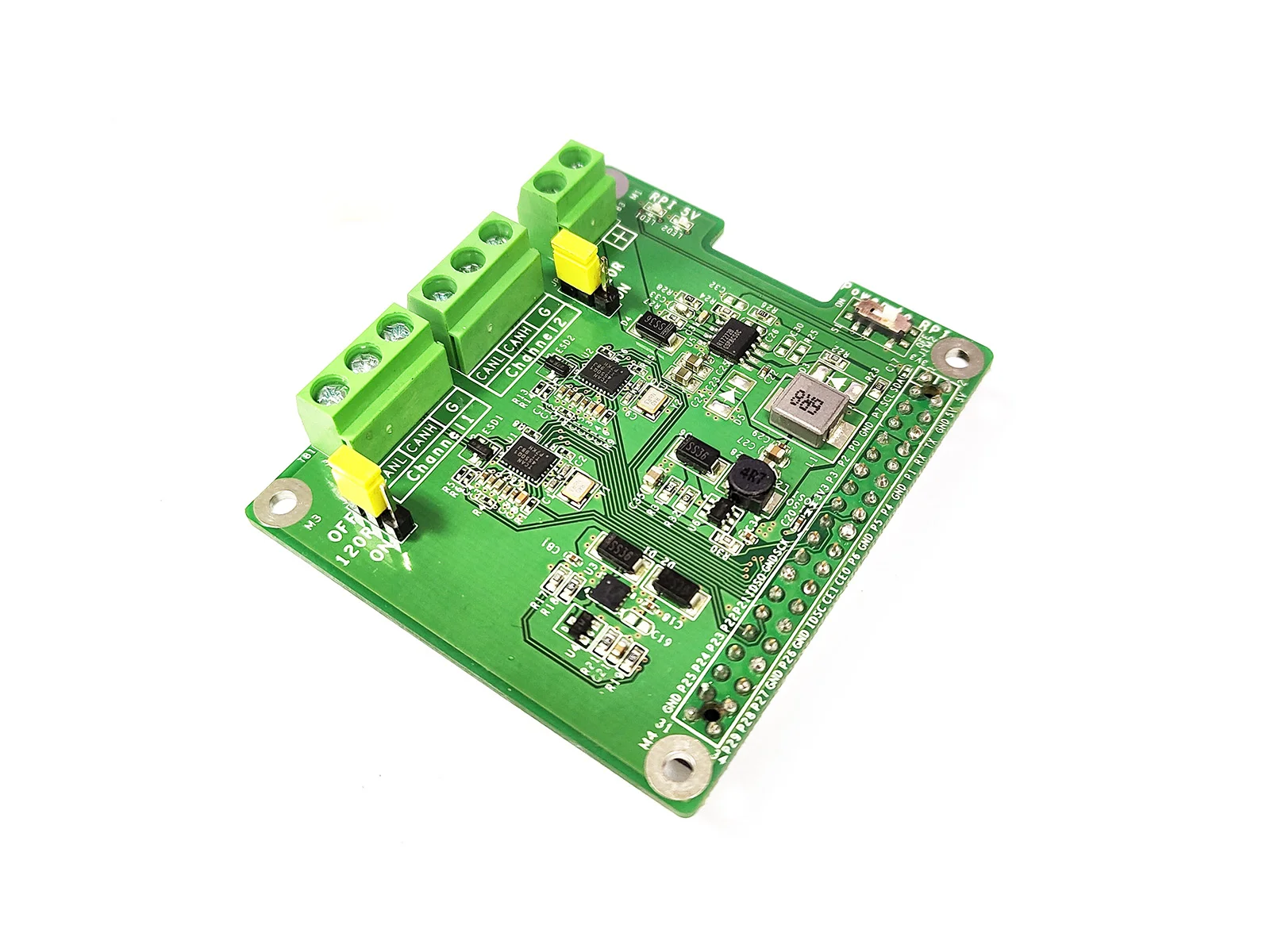

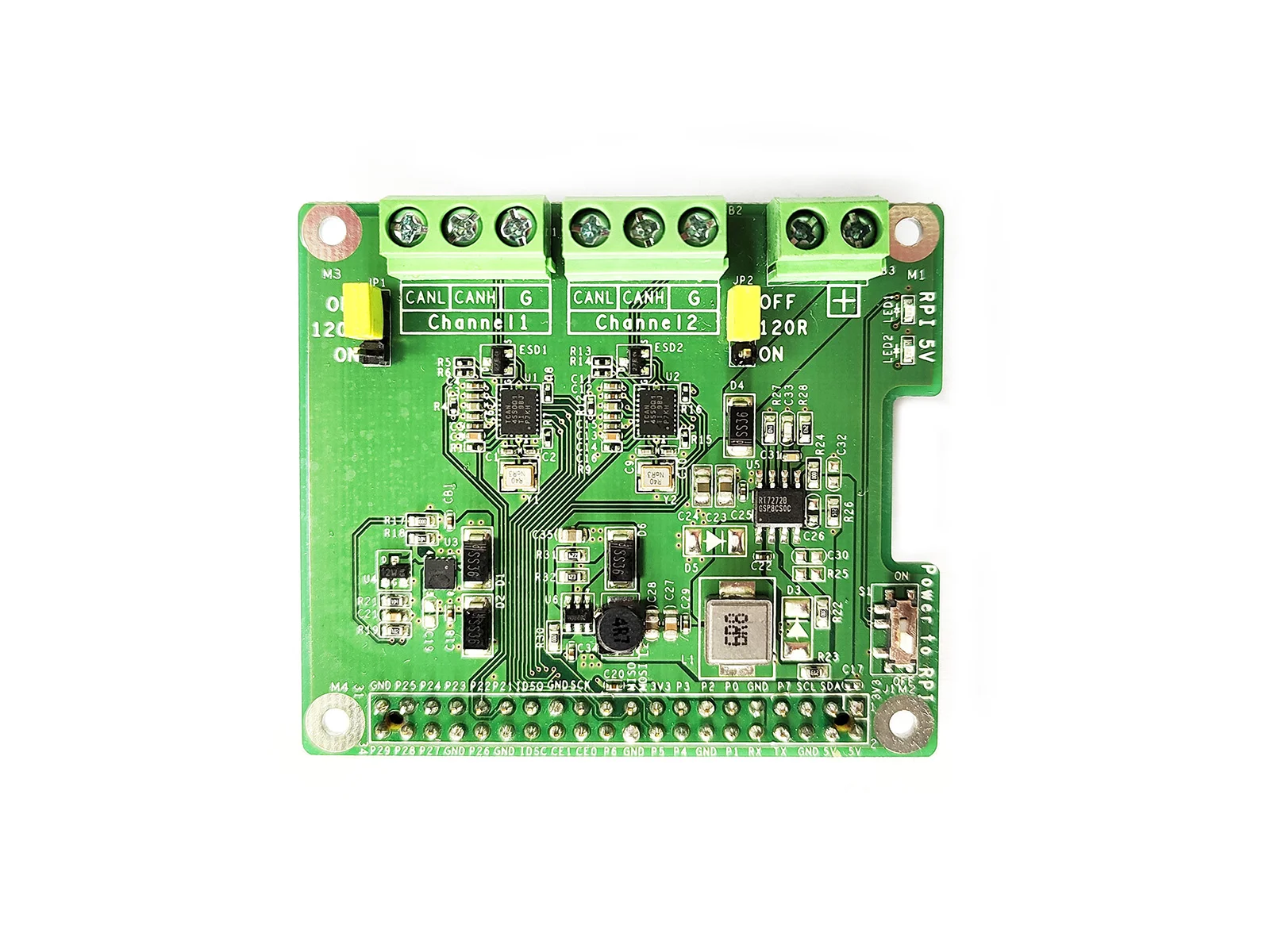

Pi-2CAN FD

2 Channel CAN BUS FD Shield for Raspberry Pi

Send Enquiry

Description

This is a CAN BUS shield for Raspberry Pi(hereinafter referred to as 2 channel pi hat), 2 channel CAN BUS I/O, support CAN FD. CAN FD support much faster transmission speed(up to 8Mbps)

Also it have two On-board 120Ω terminating resistors which are controlled by the switches.

Features


  • High-speed transfer rate: 8Mbps@10m 20AWG shielded cable / 1Mbps@40m 20AWG shielded cable
  • Stable power supply, selectable Raspberry Pi power supply or DC power supply
  • Compatible with Raspberry Pi 2, Raspberry Pi 3, Raspberry Pi 3, Raspberry Pi 4 and Raspberry Pi Zero
  • One-button configuration of 120Ω terminating resistor
  • Support CAN FD

Specifications

ParameterValue
Power Input12V~24V DC
Raspberry Pi GPIO 5V
CAN FD ControllerTCAN4550-Q1
CAN FD TransceiverTCAN4550-Q1
CAN FD Channel2
Transfer Rate8Mbps@10m 20AWG shielded cable
1Mbps@40m 20AWG shielded cable
Communication Interface with PiSPI

Document


[fac_icon icon=”file”]  Pi-2CAN FD Getting Started
